| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | Shunda |
| Số mô hình: | HSM200 |
| Số lượng đặt hàng tối thiểu: | 1 bộ máy làm cốc giấy |
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | pallet bằng gỗ cho máy cúp giấy |
| Thời gian giao hàng: | 30 ngày làm việc sau khi nhận được khoản thanh toán của bạn |
| Điều khoản thanh toán: | T/t hoặc l/c |
| Khả năng cung cấp: | 30 bộ mỗi tháng |
| Tên sản phẩm: | Máy ly giấy servo tốc độ cao | Màu sắc: | Trắng |
|---|---|---|---|
| Thêm: | với hệ thống kiểm tra | Máy nén khí: | 0,5 m³/phút |
| Tốc độ: | 160 chiếc / phút | Độ dày giấy: | 135-450 gsm |
| Hệ thống sưởi ấm: | hệ thống không khí nóng và siêu âm | Dầu: | Hệ thống bôi trơn dầu |
| Đếm: | tự chủ | Kích thước cốc: | theo yêu cầu |

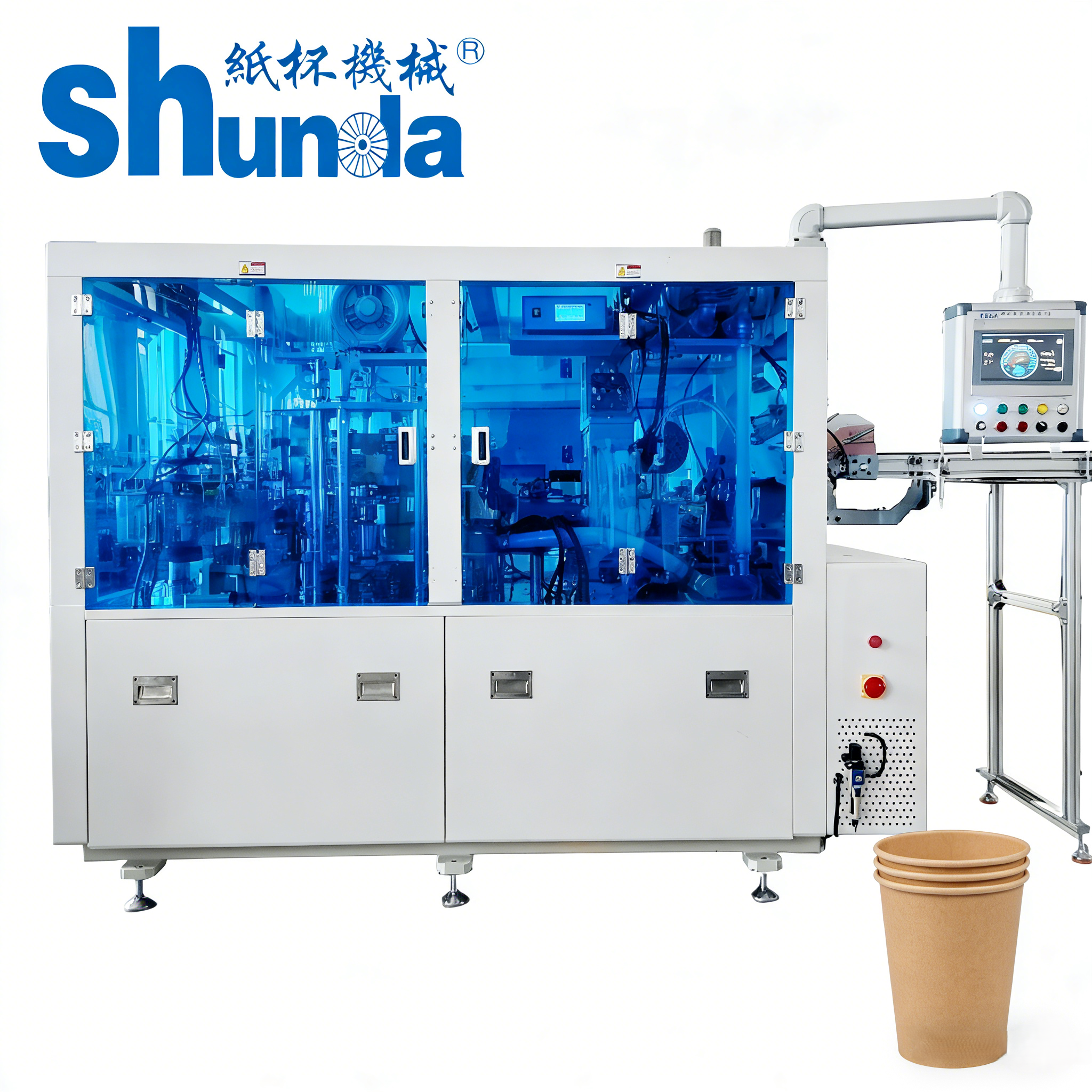

160 pcs/Min Hot Air and Serov Ultrasonic Sealing High Speed Paper Cup / Bowl Machine For Cold Drink
Description:
HSM-200 is a fully automatic forming equipment with multi-servo drive & closed-loop control, enabling high-precision, high-speed intelligent production from feeding, forming to sealing and curling.
| Model | HSM-200 | |||
| Capacity | pcs/min | 130-150 | 140-160 | 130-150 |
| Cup Size Range | mm(max) | D1:40 (min) | D1: 100 | D1: 100 |
| D2: 35 (min) | D2:80 | D2:80 | ||
| H:45 (min) | H: 140 | H: 170 | ||
| Suitable Paper | gsm | 135-450 | ||
| Paper Type | / | Single/Double PE-coated Paper, PLA Plastic Free Paper | ||
| Rated Power | KW | 380V/220V,60HZ/50HZ, 25KW | ||
| Air Compressor | / | 0.4 M³/Min 0.5MPA | ||
| Net Weight | Kg | 3300 | ||
| Machine Dimension | mm | 2500*1400*2000 | ||
| Collector Dimension | mm | 1000*900 *1760 | ||
Applications:
Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc
Whole Process
Maintaince Notice
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause hurt or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.
After Service
1. warranty:3 years
2. the guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoide or solve the problem which the buyer will face.
3. we will adjust the machine well for one week before the delivery,ensure the machine has the perfect performance.
4. we can dispatch technologists to buyer's factory,guiding installation,ajustment for a period,the buyer incharge of the salary,traffic fee,boarding and lodging,communication and Daily salary.
5. we supply the free training of buyer,the training won't stop until the buyer control the whole leson!the cost of air ticket,boarding and lodging should provided by buyer.
6. we supply the consumable spare parts for free for 3 year use.
Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional paper container equipment manufacturer integrating R&D, production and sales. With many years of industry experience, we own a strong technical team and R&D center, holding multiple national patents for core machines.
Equipped with modern workshops and professional quality control centers, we develop intelligent molding machines with international advanced tech, featuring automatic detection and remote connection systems.
Our main products include paper cup/bowl/tube/lid machines, doner box machines, skiving machines and other paper packaging equipment.
We operate a complete 6S service system, offering one-stop support from sales to after-sales, customized solutions and training. Focused on customer needs, we win high recognition from global clients in the industry.
Chengda Machinery,the paper container making machine expert!
